频率综合器(Frequency Synthesizers) |
|
频率综合器(Frequency
Synthesizers) |
|
单环综合器 |
单环综合器(SLSM2,SLSM3 与 SLSM4)性能:
带内可达12 GHz(基频)
宽频带覆盖
步进1 kHz(典型值)
良好的相位噪声与频谱质量
串口 RS485
内部或外部频率参考源
尺寸小
低成本 |
Model: SLSM3 / SLSM4 / SLSM5
 |

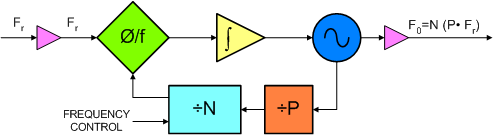

框图
描述
The Luff SLSM models are advanced technology single phase-locked loop frequency synthesizer designs. These are self contained system level components. These units offer excellent performance for many applications.
In this basic architecture, a tradeoff between frequency resolution and phase noise performance needs to be made. These units are packaged in a miniature connectorized housing. The designs offer flexibility and easy customization for your specific |
SLSM主要技术指标 |
|
SLSM3 |
SLSM4 |
SLSM5 |
输出频率 |
达12GHz |
达12GHz |
达12GHz |
频率步进 |
>.5MHz@10GMHz (典型值) |
1 KHz (典型值) |
1 KHz (典型值) |
杂散 |
-60 dBc |
-60 dBc |
-60 dBc (typical) |
谐 波(典型值) |
-20 dBc |
-20 dBc |
-20 dBc |
输出功率(最小值) |
+13 dBm |
+13 dBm |
+13 dBm |
输出功率变化 |
3 dB |
3 dB |
3 dB |
外频率参考源 |
10 MHz (typical)
0 dBm ±3 dB |
10 MHz (typical)
0 dBm ±3 dB |
10 MHz (typical)
0 dBm ±3 dB |
或内参考源 |
±1 PPM (-10℃ to
+70℃) |
±1 PPM (-10℃ to
+70℃) |
±1 PPM (-10℃ to
+70℃) |
频率控制 |
3线串行TTL电平输入 |
3线串行TTL电平输入 |
并行编码CMOS电平输入 |
告警 |
集电极开路 |
集电极开路 |
集电极开路 |
电源电压 |
+5.2VDC |
+5.2VDC |
+5.0VDC |
尺寸(英寸) |
2.50" × 2.50" × 0.60" |
2.50" × 2.50" × 0.60" |
2.50" × 2.50" × 0.60" |
|

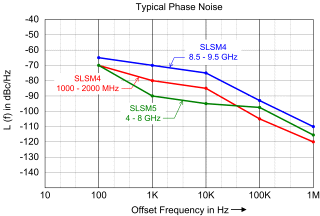

典型相位噪声曲线
|
部分频率综合器数据 |
6500 to 7500 MHz in 1 MHz steps |
SLSM3-65007500/1M |
1000 to 2000 MHz in 1 kHz steps |
SLSM4-10002000/1K |
8500 to 9500 MHz in 500 Hz steps |
SLSM4-85009500/500H |
4000 to 8000 MHz in 1 kHz steps |
SLSM5-48 |
|
|
三环综合器 |
三环综合器(TLS)性能:
带内可达12 GHz
步进100 kHz(典型值)
良好的相位噪声与频谱质量
并口或串口 RS485频率控制
内部或外部频率参考源
尺寸小
低成本 |
Model: TLS
 |

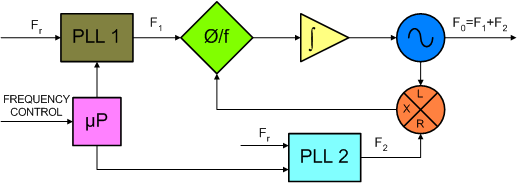

框图
|
TLS主要技术指标 |
输出频率 |
1 - 12GHz |
频率步进 |
100kHz(典型值) |
杂散 |
-60 dBc |
谐波(典型值) |
-20 dBc |
输出功率(最小值) |
+13 dBm |
输出功率变化 |
3 dB |
外部参考源 |
10 MHz (典型值) 0 dBm ±3 dB |
内部参考源稳定度 |
+/-1 ppm (-10℃ to
+70℃) |
频率控制 |
并行编码CMOS电平输入或串行RS485电平输入 |
告警 |
集电极开路 |
电源电压 |
+5.2VDC(最小值), +15VDC |
尺寸(英寸) |
6.50" × 4.10" ×0.60" |

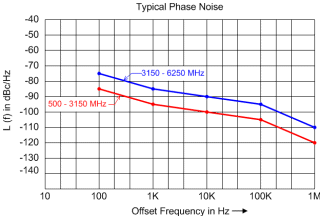

典型相位噪声曲线
|
部分频率综合器(TLS)数据 |
500 to 3150 MHz in 100 kHz steps |
TLS05003150/100K |
3150 to 6250 MHz in 100 kHz steps |
TLS31506250/100K |
8000 to 12000 MHz in 100 kHz steps |
TLS800012000/100K |
|
|
三环综合器(the new TLSD) 性能:
Output frequencies up to 12 GHz direct and 24 GHz with an X2 multiplier
Low phase noise, low microphonics and no phase hits (over temperature)
Low spurious
All standard interface options selectable within the unit (RS232, RS422, RS485)
Multi drop bus configurations
Reference Frequency: 1, 5, 10, or 20 MHz or Internal ref (±1PPM)
Rugged EMI shielded enclosure |

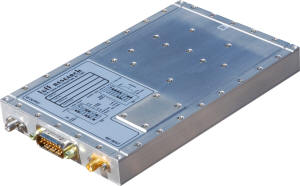

Model: TLSD
 |
框图
描述
This frequency synthesizer is designed for sensitive converter applications. The TLSD units operate from 1 to 12 GHz (in bands) and can cover in excess of octave bandwidths. The spectral quality is excellent, typically better than -90 dBc/Hz at X-band @10 kHz off the carrier.
This design is extremely flexible, providing customer selectable interfaces of RS232, RS422 and RS485. There is also a provision for multiple units on one buss. Operating several units within one draw is possible because the unit offers a multi-drop bus configuration. The units are housed in an EMI enclosure with filtered connectors for minimum radiation and interference.
This low cost frequency synthesizer offers high performance in a unit with proven quality and reliability. |
部分频率综合器(TLSD)数据 |
输出频率 |
1 - 12 GHz (Fundamental) to 24 GHz (with X2 multiplier) |
频率步进 |
100 kHz (typical) |
杂散 |
-60 dBc |
谐波(典型值) |
-20 dBc |
输出功率(最小值) |
+13 dBm |
输出功率变化 |
3 dB |
外部参考源 |
10 MHz (typical)
0 dBm ±3 dB |
内部参考源稳定度 |
+/-1 ppm (-10℃ to
+70℃) |
频率控制 |
RS-232, RS422 AND RS-485
(Selectable in unit) |
告警 |
Open Collector(high=lock) |
电磁干扰 |
-90 dBm |
电源电压 |
+5.2VDC(min.), +15VDC(min.) |
尺寸(英寸) |
6.80" x 4.40" x 0.80" |
Interface Definition
TLSD Interface Definition Rev. M (04-16-09) |
Samples of Specific Product Data Sheet: |
2.0 to 4.0 GHz in 100 kHz steps |
TLSD20004000/100K |
6.78 to 7.88 GHz in 100 kHz steps |
TLSD67807880/100K |
8.0 to 12.0 GHz in 100 kHz steps |
TLSD800012000/100K |
14.0 to 18.0 GHz in 200 kHz steps |
TLSD140001800/200K |
|
|
Model TLS2 |
The TLS2 is a smaller version of the TLSD which offers the same performance in a smaller (not EMI shielded) less costly unit. |
Samples of Specific Product Data Sheet: |
4.0 to 8.0 GHz in 100 kHz steps |
TLS2-40008000/100K |
|
|
Custom Synthesizers |
|
Phase-Locked Oscillators |
|
Custom Oscillators |
|
微波频率综合器 |
Part Number |
Operation Frequency |
Description |
 |

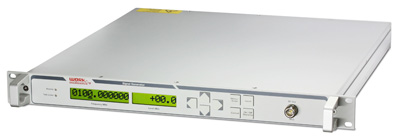

10 kHz -2.8 GHz |
10 kHz -2.8 GHz, CW Signal Generator, 19" 1RU, Low Phase NoiseMicrowave C Band Synthesizer C Band Synthesizer |
SSX RF Generator |
|
 |
87.5 MHz -2.8 GHz |
87.5 MHz -2.8 GHz, CW Signal Generator, 19" 1RU, Low Phase Noise |
SSX (E) RF Generator |
|
 |
4-10 GHz, 10-25 GHz |
4-10 GHz with 2 GHz Bandwidth max., 10-25 GHz with 2.5 GHz Bandwidth max., CW Signal Generator, 19" 1RU, Low Phase Noise |
SSG-6 - SSG-24 or with
Customized Frequencies |
|
|
已定制产品
3个独立的小开支综合器,工作带宽达8GHz
低相位噪声
低杂散
内部参考源:温补晶振(±1PPM)
小尺寸
低成本 |

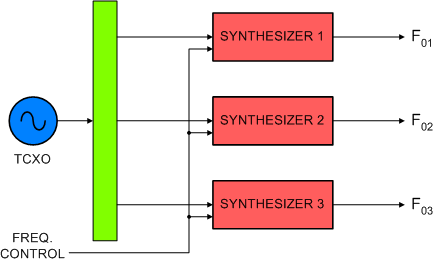

框图
|
部分频率综合器数据
6780 ~ 7880MHz,100kHz步进,RS484接口, TLSC67807880/100K
8400 ~ 9700MHz,100kHz步进,RS484接口, TLSC84009700/100K/INT-1
基于综合器的VCO可达8GHz。8GHz以上,可加二倍频器以扩展设计频率范围到20GHz。
我们按客户的详细要求最佳化设计频率综合器。 |
|
|
|
