压控晶体振荡器(Voltage Controlled Crystal Oscillators) |
|
|
Part Number |
APR (ppm) |
Operation Temp. Range |
Operation Frequency |
Size (mm) |
Waveform |
Description |

VFVX100
|
±35 |
-40 - +85℃ |
200MHz-1000MHz |
14×9 |
PECL /
LVPECL |
5.0V, 3.3V
|

VFVX110
|
±100 |
-40 - +85℃ |
200MHz
-1000MHz |
14×9 |
PECL /
LVPECL |
5.0V, 3.3V
|

VFVX120
|
±35 |
-40 - +85℃ |
19MHz
-200MHz |
14×9 |
PECL /
LVPECL |
5.0V, 3.3V
|

VFVX130
|
±35 |
-40 - +85℃ |
19MHz-200MHz |
14×9 |
CMOS |
5.0V, 3.3V
|

VFVX301
|
±150 |
-40 - +85℃ |
38MHz-700MHz |
7×5 |
LVPECL
/ LVDS |
2.5V, 3.3V
0.4ps RMS Jitter
|

VFVX321
|
±100 |
-40 - +85℃ |
60MHz-800MHz |
7×5 |
LVPECL / LVDS / LVCMOS |
2.5V, 3.3V
0.09ps Jitter @622.08MHz
|

VF230V
|
±150 |
-40 - +85℃ |
0.75MHz-800MHz |
7×5 |
LVPECL
/ LVDS |
2.6ps RMS Jitter
3.3V
|

VF194 / VF294
|
±100 |
-40 - +85℃ |
1MHz-78MHz |
7×5 |
CMOS |
5.0V, 3.3V
VF194 - Pin 5 Tristate
VF294 - Pin 2 Tristate
|

VF594
|
±50 |
-40 - +85℃ |
2MH -160MHz |
14×9 |
CMOS |
5.0V, 3.3V
|

VF596
|
±50 |
-40 - +85℃ |
19MHz-200MHz |
14×9 |
PECL /
LVPECL |
5.0V, 3.3V
|

VF594-T
|
±50 |
-40 - +85℃ |
2MHz-160MHz |
14×9 |
CMOS |
5.0V, 3.3V
|

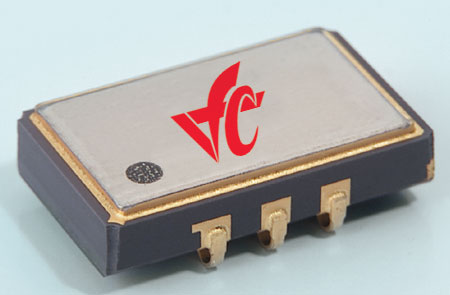

VF596-E
|
±50 |
-40 - +85℃ |
13MHz-200MHz |
14×9 |
PECL /
LVPECL |
5.0V, 3.3V
|

R3306
|
±100 |
0 - +70℃ |
1.5MHz-100MHz |
7×5 |
CMOS |
3.3V
SMD
|

R3206
|
±100 |
0 - +70℃ |
4MHz-55MHz |
7×5 |
CMOS |
5.0V
SMD
|

T2306
|
±50 |
0 - +70℃ |
3MHz-33MHz |
7×5 |
CMOS |
3.3V
4
Pad SMD
|

T2002
|
±100 |
0 - +70℃ |
3MHz-45MHz |
7×5 |
CMOS |
5V
4
Pad SMD |
Remark: The above products are in line with
 |
|
|
|
|
|
|
|

M6001
|
±50 |
-40 - +85℃ |
1MHz-150MHz |
20.32× 12.62 |
CMOS |
5.0V
|

VF940
|
±50 |
-40 - +85℃ |
2MHz-200MHz |
20.32× 12.62 |
CMOS |
5.0V, 3.3V
|

VF940-T
|
±50 |
-40 - +85℃ |
2MHz-200MHz |
20.32× 12.62 |
CMOS |
5.0V, 3.3V
|

VF960 /
VF961
|
±50 |
-40 - +85℃ |
10MHz-200MHz |
20.32× 12.62 |
PECL /
LVPECL |
5.0V, 3.3V
|

M2306
|
±150 |
0 - +70℃ |
1MHz-150MHz |
20.32× 12.62 |
CMOS |
3.3V
|

M2001
|
±175 |
0 - +70℃ |
1MHz-175MHz |
20.32× 12.62 |
CMOS |
5.0V
|

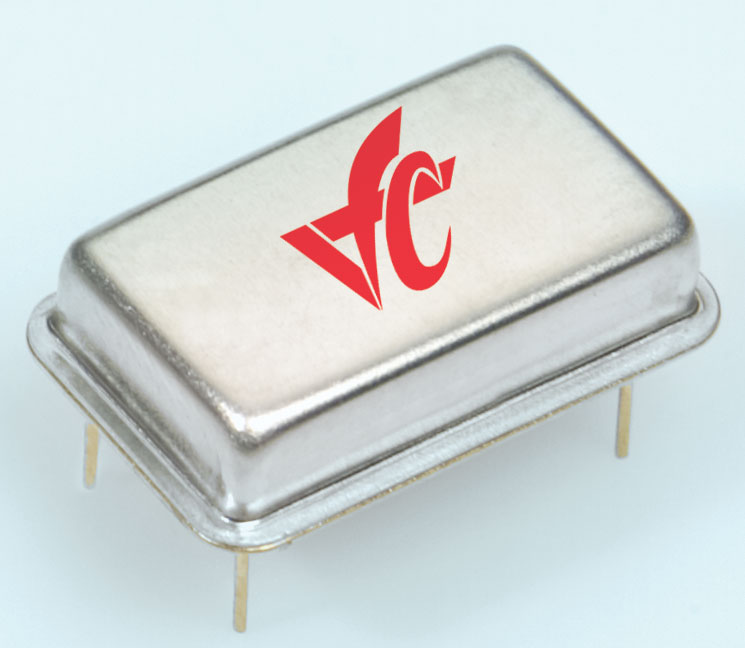

M3261
|
±75 |
0 - +70℃ |
20MHz-150MHz |
20.32× 12.62 |
CMOS |
5.0V
|

M2911
|
±100 |
0 - +70℃ |
15MHz-175MHz |
20.32× 12.62 |
PECL /
LVPECL |
5.0V
|

M2010
|
±50 |
0 - +70℃ |
10MHz-45MHz |
20.32× 12.62 |
CMOS |
5.0V
|
Remark: The above products are in line with
 |
SURFACE MOUNT VCXOs |

VC75 |
±100 |
-40 - +85℃ |
1MHz - 125MHz |
7×5×2 |
HCMOS / TTL |
5.0V, 3.3V
LLC
|

VC53 |
±100 |
-40 - +85℃ |
1MHz - 108MHz |
5×3.2×1.3 |
HCMOS / TTL |
5.0V, 3.3V
LLC
|

VC75PE |
±100 |
-40 - +85℃ |
130MHz - 200MHz |
7×5×2 |
PECL /
LVPECL |
3.3V
LLC |

VC75P1 |
±100 |
-40 - +85℃ |
1MHz - 800MHz |
7×5×2 |
PECL /
LVPECL |
3.3V
LLC
|

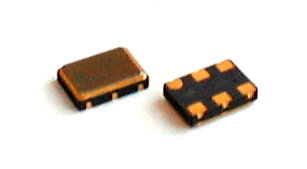

VC75P2 |
±50 |
-40 - +85℃ |
120MHz - 800MHz |
7×5×2 |
PECL /
LVPECL |
3.3V
LLC
|

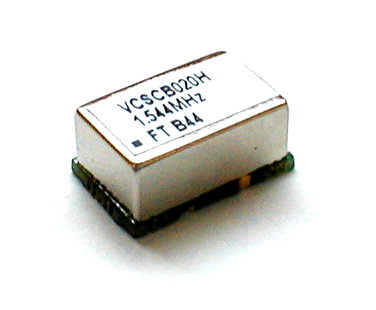

VCFR |
±100 |
-40 - +85℃ |
1MHz - 160MHz |
14×9×6 |
HCMOS / TTL |
5.0V, 3.3V
FR4/PCB SMD
|

VCFRPE |
±100 |
-40 - +85℃ |
10MHz - 622.08MHz |
14×9×6 |
LVPECL |
5.0V, 3.3V
FR4/PCB SMD
|
|
|
|
|
|
|
|
THRU-HOLE VCXOs |

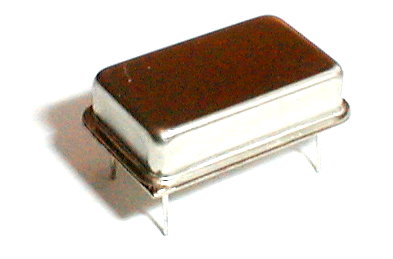

VC14 |
±100 |
-40 - +85℃ |
1MHz - 45MHz |
20.8×13×5.08 |
HCMOS / TTL |
5.0V, 3.3V
14 Pin Dip
|

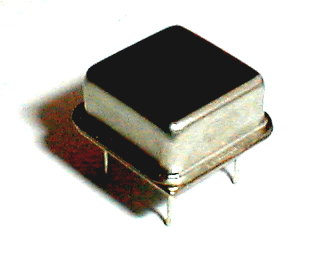

VC08 |
±100 |
-40 - +85℃ |
1MHz - 39MHz |
13×13×5.08 |
HCMOS / TTL |
5.0V, 3.3V
8 Pin Dip Half-Size
|

VC14H |
±100 |
-40 - +85℃ |
1MHz - 160MHz |
20.8×13×5.08 |
HCMOS /
TTL |
5.0V, 3.3V
14 Pin Dip
|

VC14S |
±100 |
-40 - +85℃ |
6MHz - 190MHz |
20.8×13×5.08 |
SINE
 |
5.0V, 3.3V
14 Pin Dip |
Remark: The above products are in line with
 |
|
|
|
