Products　　OCXOs	中文版

Oven Controlled Crystal Oscillators

Ultra Low Phase Noise OCXO

Series	Oper. Temp.	Stability	Frequency	Output	Supply Tuning Voltage	Phase Noise
O.40.803188-EB-LF						Test	Typ.
25.8×25.8×14.0mm	-40 to +85℃	±1.00E-07 @ -40 to +85℃	100MHz	Sine +13 to +15dBm	+12V 0 to +10V	-103 -133 -163 -177 -180 -180	-097dBc/Hz@10Hz -130dBc/Hz@100Hz -160dBc/Hz@1000Hz -173dBc/Hz@10kHz -175dBc/Hz@100kHz -178dBc/Hz@1MHz

MTI-Milliren Anti-Vibration Low-G OCXO

Series	Oper. Temp.	Stability Vibration Spectrum	Frequency	Output	Supply Tuning Voltage	Phase Noise
222 Anti-Vibration Low-G OCXO
25.4×25.4×14.4mm	-55 to +95℃	±1.00E-08 @ -55 to +95℃ 10 Hz 0.05g^2/Hz 100 Hz 0.05g^2/Hz 100Hz to 1kHz -20dB/decade Shock 30g, 11ns half sine	10MHz	Sine +7 to +11dBm	+6.5 V 0 to +5V	-90dBc/Hz@1Hz -120dBc/Hz@10Hz -140dBc/Hz@100Hz -150dBc/Hz@1000Hz -157dBc/Hz@10000Hz -160dBc/Hz@100000Hz

MTI-Milliren Ultra Compact OCXO

Series	Oper. Temp.	Stability	Frequency	Output	Supply Tuning Voltage	Phase Noise 100MHz Typ.
211 Ultra Compact OCXO
20.07×13.08×10.01mm	-55 to +95℃	±2.00E-08 @ -30 to +70℃ ±5.00E-08 @ -40 to +85℃ ±5.00E-08 @ -30 to +70℃	10MHz 40MHz 80MHz 100MHz 200MHz	Sine 0 to +13dBm	+3.3 to 15V 0 to +10V	-60dBc/Hz@1Hz -90dBc/Hz@10Hz -120dBc/Hz@100Hz -150dBc/Hz@1000Hz -155dBc/Hz@10000Hz -162dBc/Hz@100000Hz

MTI-Milliren Ultra Low Phase Noise OCXO

Series	Oper. Temp.	Stability	Frequency	Output	Supply Tuning Voltage	Phase Noise
220-0520 Ultra Low Phase Noise OCXO
24.8×20.3×12.7mm	-45 to- +85℃	±5.00E-08 @ -30 to +70℃ ±1.00E-07 @ -45 to +85℃	100MHz	Sine +7 to +11dBm	+12 V 0 to +5V	-65dBc/Hz@1Hz -95dBc/Hz@10Hz -125dBc/Hz@100Hz -155dBc/Hz@1000Hz -158dBc/Hz@10000Hz -160dBc/Hz@100000Hz

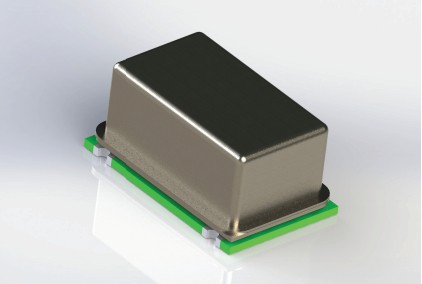

212 SMD Ultra Compact OCXO
20.07×13.08×10.8mm	-55 to +95℃	±2.00E-08 @ -30 to +70℃ ±5.00E-08 @ -40 to +85℃ ±5.00E-08 @ -30 to +70℃	10MHz 40MHz 80MHz 100MHz 200MHz	Sine 0 to +13dBm	+3.3 to 15V 0 to +10V	-60dBc/Hz@1Hz -90dBc/Hz@10Hz -120dBc/Hz@100Hz -150dBc/Hz@1000Hz -155dBc/Hz@10000Hz -162dBc/Hz@100000Hz

MTI-Milliren OCXOs

Series	Stability	Oper. Temp.	Frequency	Output	Supply Tuning Voltage	Size (mm) Features	Applications
205 Series OCXO - Hermetically Sealed Mini Quartz Crystal Oscillator
1.00E-06 to 7.00E-06		-40 to +85℃	8MHz to 200MHz	+7dBm Sine	12V 0 to 10V	20.7×13.1×10.0 (205) Stratum III.5 Low Phase Noise Low Power Consumption Compact Package	Mobile Radios PCS Systems Home Meter Reading Battery Powered Application
210 Series OCXO - Mini OCXO in a 14 Pin DIP Package
1.00E-07 to 1.00E-06		-40 to +85℃	32KHz to 120MHz	HCMOS/ACMOS +9dBm Sine	5 to 15V 0.5 to 10V	18.3×13.2×12.0 (210) STRATUM III, IIIe Performance Low Phase Noise Low Power Consumption 14-Pin DIP Package	Microwave Radios V-SAT Terminals GPS Receivers SONET Clocks Instrumentation
220 & 221 Series OCXO - High Performance Hermetically Sealed 16-Pin DIP & SMT OCXO
5.00E-09 to 5.00E-07		-55 to- +85℃	4.8MHz to 100MHz	HCMOS/ACMOS +9dBm Sine	3.3 to 15V 0 to 10V	24.8×20.3×12.7 (220) 24.8×20.3×13.2 (221) STRATUM III, IIIe Low Phase Noise Compact Package Hermetically Sealed High Reliability Surface Mount Available on Tape and Real	GPS Receivers Instrumentation, PC, VXI/VME V-SAT Terminals Rack Mounted Applications Cellular Paging Base Stations
230 Series OCXO - Compact and High Performance
5.0E-09 to 5.0E-07		-40 to +80℃	32KHz to 60MHz	HCMOS/ACMOS +17dBm Sine	5 to 28V -10 to 10V	36.1×27.2×19.4 (230) STRATUM III, IIIe Low Phase Noise	GPS Receivers Cellular/Paging Base Stations PCS, GMS, CDMA Encryption Instrumentation
240 & 241 Series OCXO's - Low Profile Package Quartz Oscillators
1.00E-08 to 5.00E-07		-40 to +80℃	75KHz to 30MHz	HCMOS/ACMOS +9dBm Sine	11 to 28V -10 to 10V	38.1×38.2×13.2 (240) 50.9×41.0×13.5 (241) STRATUM III, IIIe Low Profile Low Phase Noise	VME/VXI PC Card Instrumentation Rack Mounted Applications VSAT, INMARSAT
250-251-252-253-254 Series - OCXO - Industry Standard Oscillators
2.00E-09 to 5.00E-07		-40 to +80℃	32KHz to 60MHz	HCMOS/ACMOS +17dBm Sine	11 to 28V -10 to 10V	50.8×50.8×25.4 (250) 51.0×41.0×25.0 (251) 67.0×57.2×27.0 (252) 50.0×50.8×19.1 (253 7Pin) 50.0×50.8×19.1 (254 5Pin) STRATUM IIIe+ Performance Low Phase Noise Mounting & Connection Options Super Low Phase Noise Options	STRATUM III, IIIe Telephony Point-to-Point Wireless GPS Receivers INMARSAT V-SAT Instrumentation Aerospace
260 Series OCXO - Ultra Stable Atomic Standard Replacement Oscillator
2.00E-10 to 4.00E-09		-40 to +80℃	32KHz to 30MHz	HCMOS/ACMOS +13dBm Sine	11 to 28V -10 to 10V	50.8×50.8×38.1 (260) STRATUM III, IIIe+ PCB Mount Industry Standard Footprint	Atomic Standard Replacement GPS Receivers Timing and Frequency Standards TDMA PCS Base Stations Quasi Synchronous Radio Aerospace
270 Series OCXO - Ultra Stable Miniature Rubidium Rival Oscillator
2.00E-10 to 5.00E-09		-30 to +70℃	5KHz to 90MHZ	HCMOS/ACMOS +13dBm Sine	12V 0 to 5V	36.1×27.2×19.4 (270) STRATUM II, IIIe+ Performance Ultra High Stability High MTBF	STRATUM II, IIIe+ Telephony Atomic Standard Replacement GPS Receivers Timing and Frequency Standards TDMA PCS Base Stations Quasi Synchronous Radio Aerospace

Valpey Fisher OCXOs

Part Number	Stability	Operation Temp. Range	Operation Frequency	Waveform	voltage Phase noise	Power	Size (mm)
VFOV100	±5×10^-9	-40 - +85℃	5MHz-120MHz	HCMOS / SINE	3.3/5.0/12V -168dBc/Hz@100KHz	1W	25.4×22.1×13.2 (100) 20.2×20.2×12.0 (101) 35.4×26.7×12.7 (102) 25.4×25.4×12.7 (103)
VFOV110	±2×10^-7	-40 - +85℃	50MHz-135MHz	CMOS / SINE	5.0/12.0V -174dBc/Hz@100KHz	1.2W	25.4×22.0×13.2 (110)
VFOV200	±5×10^-9 ±1.5×10^-9 ±5×10^-9 ±5×10^-9	-40 - +85℃	5MHz-250MHz	HCMOS / SINE	3.3/5.0/12.0V -160dBc/Hz@100KHz	1.2W	25.4×22.1×13.2 (200) 20.2×20.2×12.0 (201) 35.4×26.7×12.7 (202) 25.4×25.4×12.7 (203)
VFOV300	±1×10^-10	-40 - +85℃	8MHz-100MHz	HCMOS / SINE	5.0/12.0V -165dBc/Hz@10KHz	1.25W	35.4×26.7×16.3 (302)
VFOV400	±5×10^-9 ±5×10^-9 ±5×10^-9 ±1.5×10^-9	-40 - +85℃	5MHz-250MHz 5MHz-250MHz 5MHz-50MHz 5MHz-250MHz	HCMOS H. / SINE HCMOS H. / SINE	3.3/5.0V -165dBc/Hz@10KHz	0.12W	20.2×20.2×10.0 (401) 20.5×15.1×10.0 (404) 15.9×15.1×10.0 (405) 21.9×19.0×10.0 (406)
VFOV500	±5×10^-9	-40 - +85℃	30MHz-120MHz	HCMOS / TTL	3.3/5.0V -165dBc/Hz@10KHz	0.12W	20.5×15.1×10.0 (504)
VFOV600	±1×10^-7	-20 - +70℃	10MHz-100MHz	HCMOS / TTL	3.3/5.0V -160dBc/Hz@10KHz	0.5W	20.8×13.2×10.0 (600)
VFOV650	±1×10^-8	-40 - +85℃	10MHz-52MHz	HCMOS / TTL	3.3V -170dBc/Hz@10KHz	0.6W	20.8×13.2×10.0 (650)

Fortiming Corporation OCXOs

Part Number	Stability	Operation Temp. Range	Operation Frequency	Waveform	voltage Phase noise	Power	Size (mm)

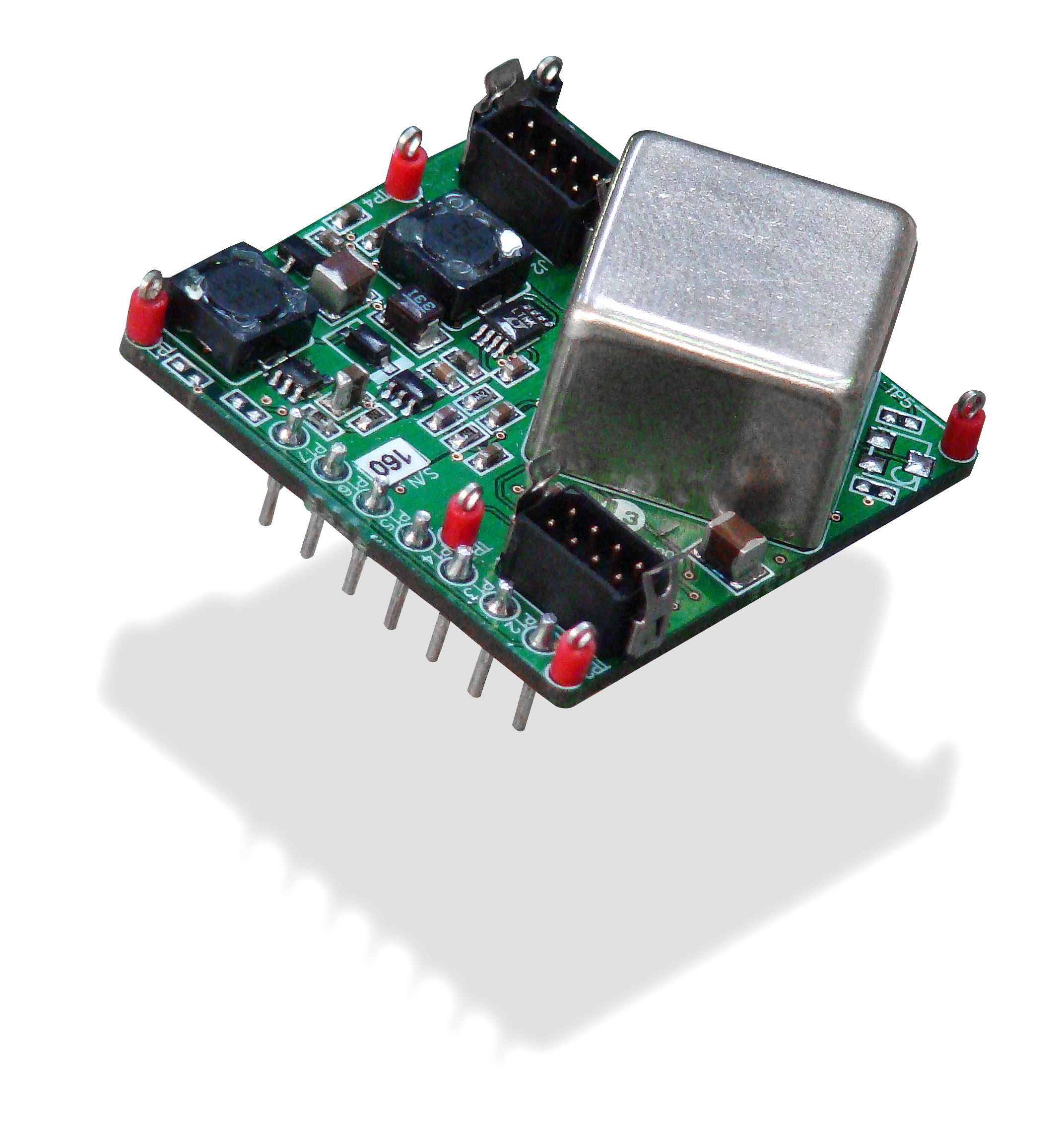

HPTR	±5×10^-10	-30 - +50℃	10MHz	L-3 Nautronix High Precision Timing Reference; Standard 1 PPS output; Low power consumption (68 mW at 25°C); High stability (0.5 ppb); Compact size and weight; Ideal for high precision sub-sea positioning in the oil and gas industry. LVCMOS3.3, 40.9×40.9×15.7

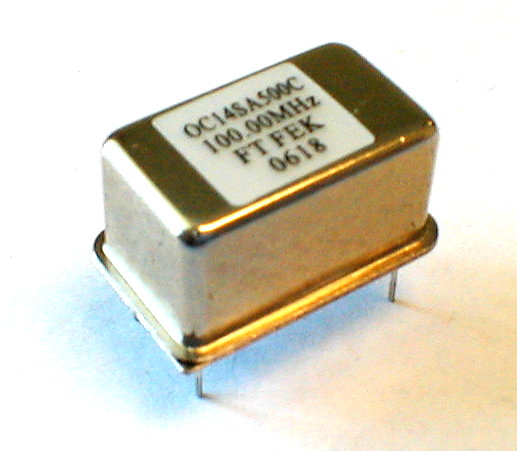

OC14S	±1×10^-7	-40 - +85℃	8MHz - 100MHz	SINE	5.0V -150dBc/Hz@10KHz	0.75W	20.8×13.2×8.7
OC14C	±1×10^-7	-40 - +85℃	1MHz - 100MHz	CMOS / TTL	5.0/3.3V -150dBc/Hz@10KHz	0.75W	20.8×13.2×8.7

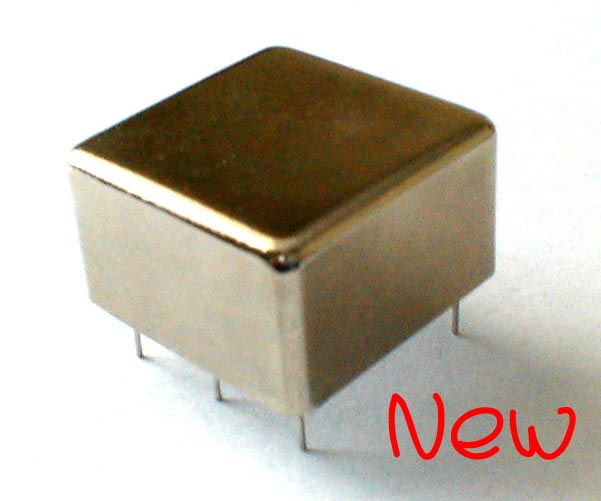

OCM37	±5×10^-9	-40 - +85℃	5MHz - 250MHz	SINE / HCMOS	5.0/3.3V -155dBc/Hz@1KHz -165dBc/Hz@10KHz	0.15W	20.4×20.4×14.5
OC20S	±1×10^-7	-40 - +85℃	4MHz - 100MHz	SINE	5.0V -155dBc/Hz@10KHz	1W	20.3×20.3×10.5

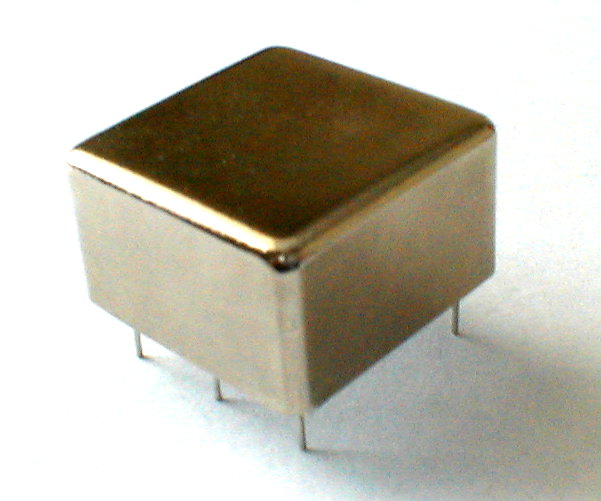

OC20C	±1×10^-7	-40 - +85℃	1MHz - 100MHz	CMOS	5.0V -155dBc/Hz@10KHz	1W	20.3×20.3×10.5

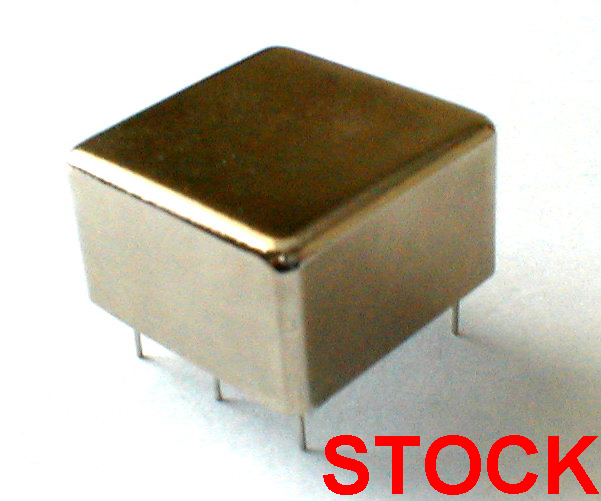

OC25S	±1×10^-8	-40 - +85℃	4MHz - 100MHz	SINE	5.0/12.0V -155dBc/Hz@10KHz	1W	25.4×25.4×16
OC25S-100MHz	±1×10^-8	-40 - +85℃ -55 - +85℃	100MHz	SINE	12.0V -155dBc/Hz@1KHz -165dBc/Hz@10KHz	1W	25.4×25.4×12.7
OC25C	±1×10^-8	-40 - +85℃	1MHz - 100MHz	CMOS	5.0/12.0V -155dBc/Hz@10KHz	1W	25.4×25.4×16
OC36S	±1×10^-8	-40 - +85℃	4MHz - 100MHz	SINE	5.0/12.0V -155dBc/Hz@10KHz	1W	36.2×27.2×16

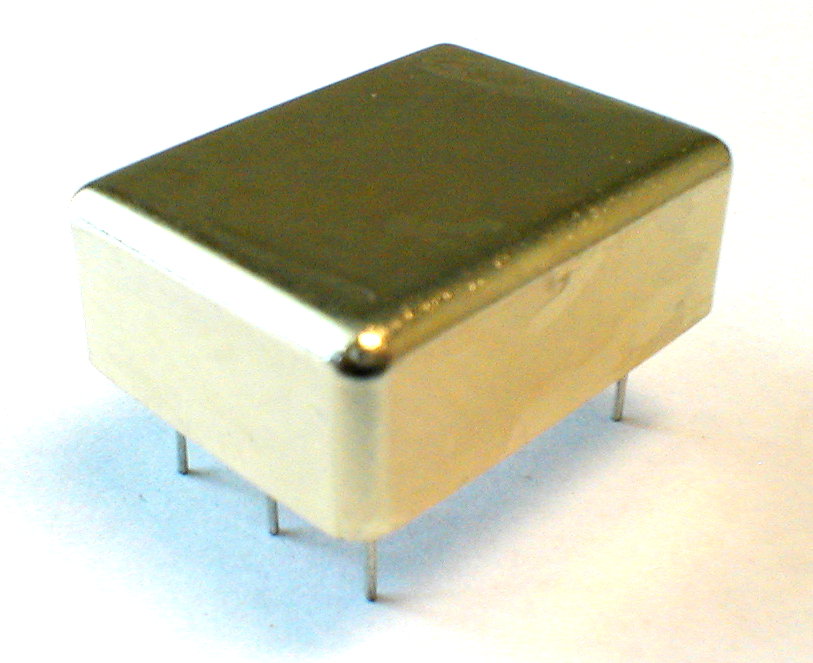

OC36C	±1×10^-8	-40 - +85℃	1MHz - 100MHz	CMOS	5.0/12.0V -155dBc/Hz@10KHz	1W	36.2×27.2×16
