Dielectric Resonator Oscillators
1. Free Running DRO (FRDRO)
parameter Unit Part Number
DRO0102 DRO0204 DRO0408 DRO0811 DRO1113 DRO1315 DRO1518
Frequency GHz 1 - 2 2 - 4 4 - 8 8 - 11 11 - 13 13 - 15 15 - 18
Power dBm 10 - 12 10 - 12 10 - 12 10 - 12 10 - 12 10 - 12 10 - 12
Phase Noise 1Hz(BW)
@10KHz dBc/Hz -100 -95 -87 -85 -83 -80 -80
@100KHz dBc/Hz -130 -130 -125 -125 -120 -115 -115
@1MHz dBc/Hz -140 -140 -135 -135 -130 -125 -120
Mechanical tuning MHz +/-50 +/-50 +/-60 +/-60 +/-80 +/-80 +/-80
Electrical tuning MHz 15 15 15 10 10 10 10
Electrical tuning Voltage V 0 - 5 0 - 5 0 - 5 0 - 5 0 - 5 0 - 5 0 - 5
Harmonics dBc -25 -25 -25 -30 -30 -30 -30
Spurious dBc -80 -80 -80 -80 -80 -80 -80
Load pulling MHz +/-15 +/-15 +/-15 +/-15 +/-15 +/-15 +/-15
Temperature stability ppm/℃ +/-2 +/-2 +/-2 +/-2 +/-2 +/-2 +/-2
dB +/-0.5 +/-0.5 +/-0.5 +/-0.5 +/-0.5 +/-0.5 +/-0.5
Supply voltage V 5, 12 - 15 5, 12 - 15 5, 12 - 15 5, 12 - 15 5, 12 - 15 5, 12 - 15 5, 12 - 15
Supply current mA ≤200 ≤200 ≤200 ≤200 ≤200 ≤200 ≤200
Operation Temp. range -40 - +85 -40 - +85 -40 - +85 -40 - +85 -40 - +85 -40 - +85 -40 - +85
Storage Temp. range -55 - +90 -55 - +90 -55 - +90 -55 - +90 -55 - +90 -55- +90 -55 - +90
Dimension mm   D-1 D-1 D-1 D-2, D-3 D-2, D-3 D-2, D-3 D-2, D-3


2. External Phase-locked DRO (EPLDRO)
Parameter Unit Part Number
PDRO0102 PDRO0204 PDRO0408 PDRO0811 PDRO1113 PDRO1315 PDRO1518
Frequency GHz 1 - 2 2 - 4 4 - 8 8 - 11 11 - 13 13 - 15 15 - 18
Power dBm 13 - 15 13 - 15 13 - 15 13 - 15 13 - 15 13 - 15 13 - 15
Phase noise 1Hz(BW)
@1KHz dBc/Hz +20*Log(N)+3
@10KHz dBc/Hz -125 -125 -120 -120 -115 -110 -105
@100 KHz dBc/Hz -130 -130 -125 -125 -120 -115 -115
@1MHz dBc/Hz -140 -140 -135 -135 -130 -125 -120
Power stability dB +/-0.5 +/-0.5 +/-0.5 +/-0.5 +/-0.5 +/-0.5 +/-0.5
Reference MHz 50 - 500 50 - 500 50 - 500 50 - 500 50 - 500 50 - 500 50 - 500
Reference power dBm -3 - 13 -3 - 13 -3 - 13 -3 - 13 -3 - 13 -3 - 13 -3 - 13
VSWR   1.5:1 1.5:1 1.5:1 1.5:1 1.5:1 1.5:1 1.5:1
Harmonics dBc -35 -35 -35 -35 -35 -35 -35
Spurious dBc -80 -80 -80 -80 -80 -80 -80
Locked alarm   TTL low / High
Supply voltage V 5, 12 - 15
Supply current mA ≤350
Operation Temp. range -40 - +85
Storage Temp. range -55 - +90
Dimension mm D-4 D-4 D-4 D-4 D-4 D-4 D-4
3. DRO Preview
4. Internal Phase-locked DRO (IPLDRO)
Please contact us via info@tonron.com
Dimensions(Click for large picture)

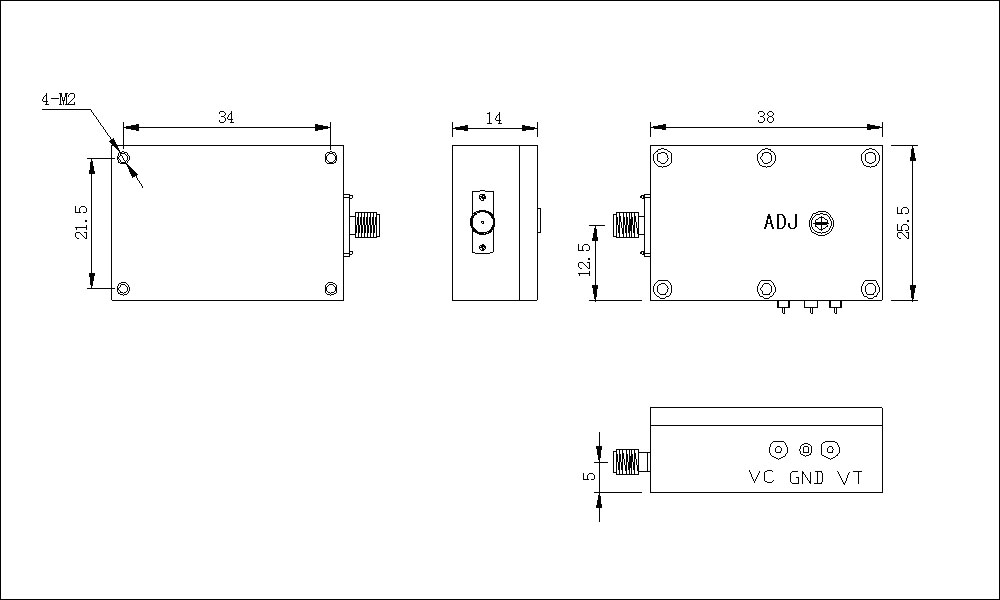

D-1

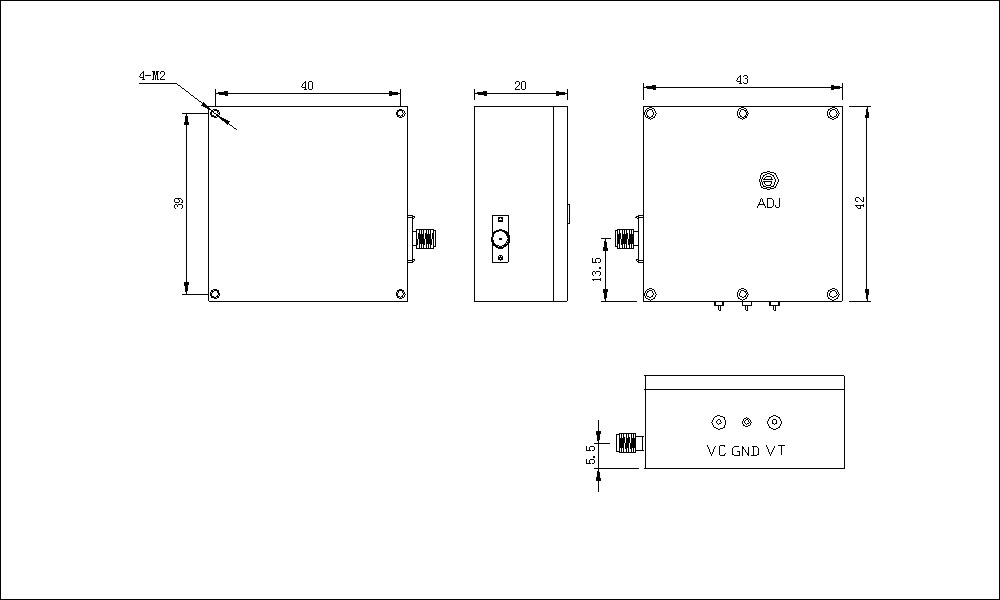

D-2

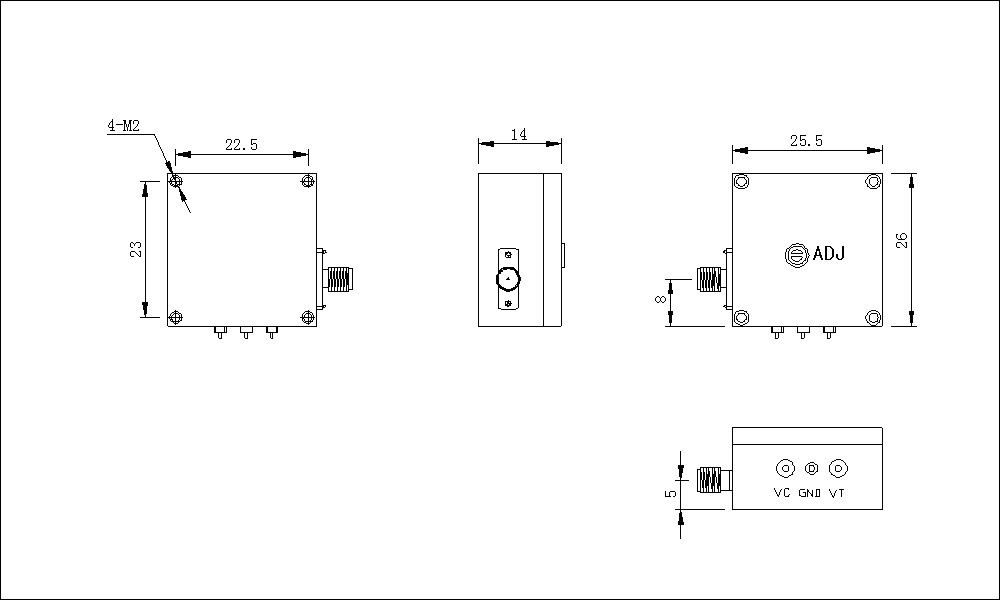

D-3

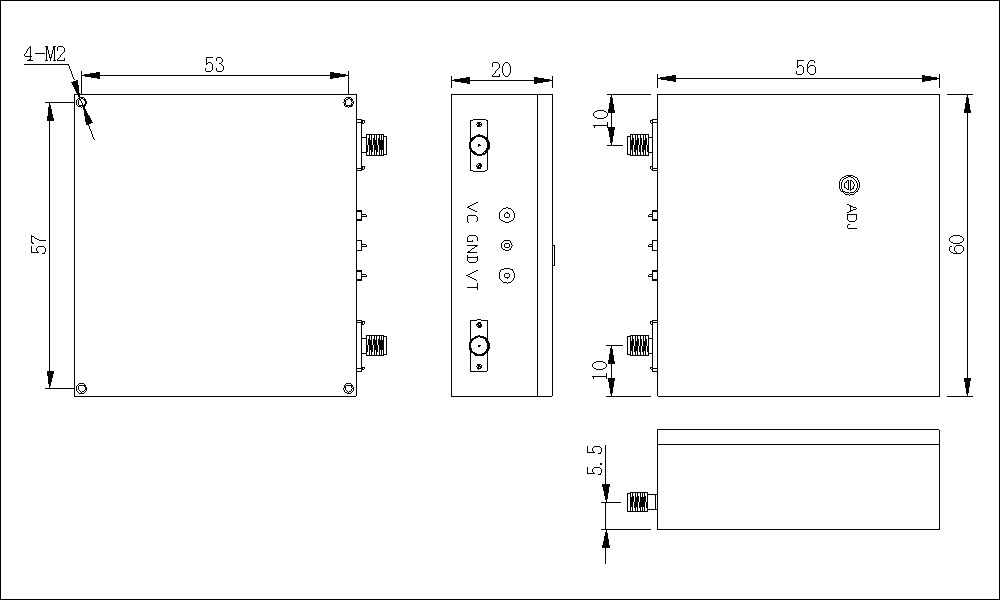

D-4
